4S 50A 12V Battery PCM LFP
- Over Discharge Protection
- Over Charge Protection
- Over Current Protection
- Short Circuit Protection
- Common Port
- Dropped Line Protection
- Balanced
Additional information
| Product Name: | 4S 50A Battery Protection Board 12V |
|---|---|
| Suitable: | 3.2V LifePo4 Cell |
| Continous Diacharge Current: | 50A |
Product Details:

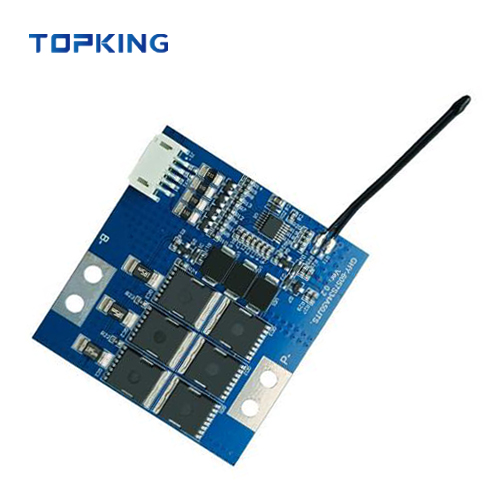

4s 12.8V 50A Li-ion Battery Protection Board BMS
| Serial No | Item | Standard | ||||||
| 1 | Voltage | Charging Voltage | DC: 14.6V | |||||
| Single Cell Balance Voltage | 3.55V ±30mV | |||||||
| 2 | Current | Single Cell Balance Current | 53mA ±5mA | |||||
| Maxmum Continous Charge Current: | 38A ±2A | |||||||
| Maxmum Continous Discharge Current: | 50A | |||||||
| 3 | Charging Protection | Charging Detective Voltage | 3.65V ±40mV | |||||
| Overcharge recovery voltage | 3.55V ±40mV | |||||||
| 4 | Discharge Protection | Over discharge detective voltage | 2.30V ±40mV | |||||
| Over discharge recovery voltage | 2.70V ±40mV | |||||||
| 5 | Over current Protection | First Class Protection Current: | 98A ±2A | |||||
| Short Circuit Protection Current / Time: | 608A / 520uS | |||||||
| Overcurrent release method | Removing loading | |||||||
| 6 | Short Circuit Protection | Detective Status | External Short Circuit | |||||
| Recovery Status | Removing loading | |||||||
| 7 | Internal Resistance | Protection Circuit (MOSPET) | ≤2.5mR | |||||
| 8 | Temperature Protection | Working Temperature Range | ﹣20～+60℃ | |||||
| Storage temperature | ﹣40～+85℃ | |||||||
| 9 | Size（L*W*H） | 60*57*4.2mm | ||||||
