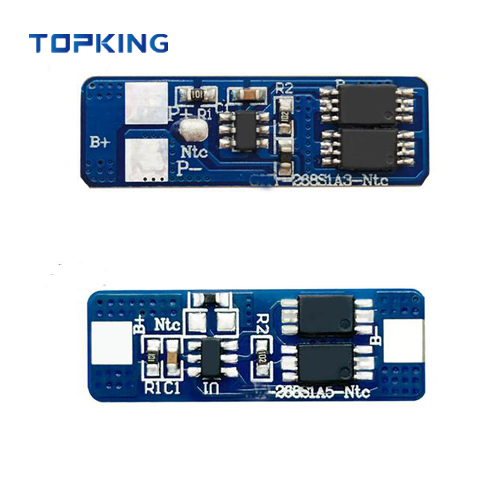

1S 4A 3.7V PCM NTC
1S 2S 3S 4S BMS 7.4V NTC
Small size: 26*8mm
Additional information
| Product Name: | 1S 4A 3.7V PCM with NTC |
|---|---|
| Suitable: | 3.7V Battery Cells |
| Current: | 4A |
| MOS Qty | 2A / 3A -1PC |
Product Details:
| Item | Standard parameters | |||||||
| Voltage | Charging Voltage | DC: 4.2V (MAX:5V) | ||||||
| Single Cell Balance Voltage | / | |||||||
| Current | Single Cell Balance Current | / | ||||||
| Maxmum Continous Discharge Current: | 4A | |||||||
| Charging Protection | Charging Detective Voltage | 4.28V ± 0.05 V | ||||||
| Overcharge recovery voltage | 4.08V ± 0.05 V | |||||||
| Discharge Protection | Over discharge detective voltage | 2.4V ± 0.1 V | ||||||
| Over discharge recovery voltage | 3.0V ± 0.1V | |||||||
| Overcurrent Protection | Overcurrent Detective Voltage | 150mv ± 30mv | ||||||
| Overcurrent Detective Current | 6A ± 0.5A | |||||||
| Overcurrent release method | Relieves loading and automatically recovery output | |||||||
| Short Circuit Protection | Detective Status | Short Circuit External | ||||||
| Recovery Status | Loading removing, recovery automatic | |||||||
| Internal Resistance | Protection Circuit (MOSPET) | ≤25mΩ | ||||||
| Temperature Protection | Temperature Switch Off | / | ||||||
| Temperature Switch Recovery | / | |||||||
| Working Range | -20~+85℃ | |||||||
| Others | Product size（L*W*H） | 26*8*1.8mm | ||||||
| Net Weight | 20g | |||||||
| Storage temperature / humidity | -40~125℃ / 10%-95% RH non-condensing | |||||||
