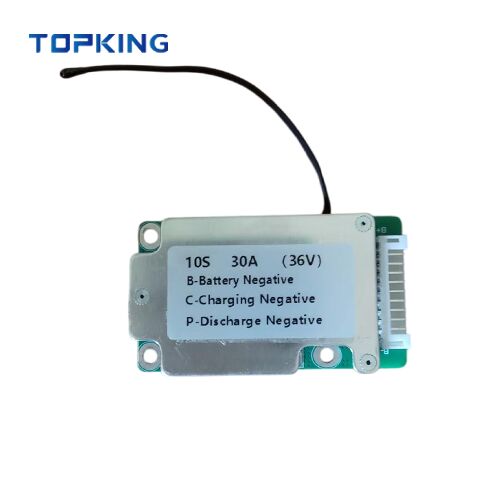

10S 30A 36V BMS Split Port
- 7s 10s 12S 13S 14S 15S 16S BMS for Lithium Battery available.
- Standard size or Custom-made Size
- Over Charge Protection
- Over Discharge Protection
- Over Current Protection
- Short Circuit Protection
- Temperature Protection
Additional information
Product Details:
10S 30A PCM for Li-ion battery pack 36V, Seperate Port B- C- P-
| Details | Spec | |
| Voltage | Charge Voltage | 36V |
| Split Port | Yes | |
| Overcharge Protection | Overcharge Detection Voltage | 4.25V ± 0.05V |
| Overcharge Release Voltage | 4.13V ± 0.05V | |
| Overcharge Protection Delay time | 1000ms ± 500ms | |
| Over Discharge Protection | Over Discharge Detection Voltage | 2.5V ± 0.1V |
| Over Discharge Release Voltage | 2.7V ± 0.1V | |
| Over Discharge Delay time | 1000ms ± 500ms | |
| Over Current Protection | Continuous discharging current | 30A |
| Discharge Over Current Protection | 140A ± 10A | |
| Over Current Protection Release Condition | Loading disconnection | |
| Short Circuit Protection | Short Circuit Protection Conditions | Short circuit of external load |
| Short Circuit Protection Release Condition | Charging recovery or loading disconnection | |
| Internal Resistance | Protection Circuit (MOSPET) | <20mΩ |
| Balance | Single Cell Balance Voltage | / |
| Single Cell Balance Current | / | |
| Temperature Protection | Operating Temperature Range | -20/65℃ |
| Charge Temperature Protection | 55℃ ± 5℃ | |
| Discharge Temperature Protection | 75℃ ± 5℃ |
Features:
- Split Port B- C- P-
- Charge Overvoltage Protection
- Discharge Overvoltage Protection
- Discharge Overcurrent Protection
- Output Short Circuit Protection
- Temperature Protection
