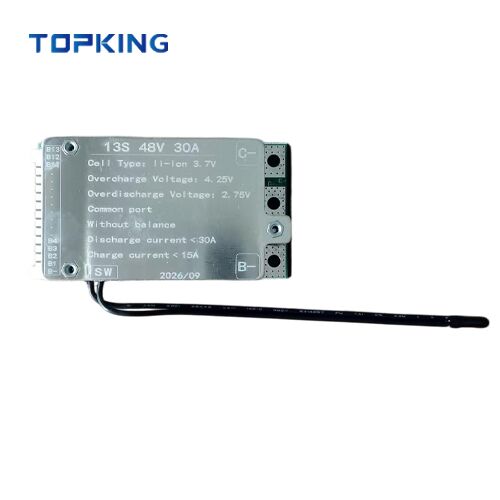

13S 48V 30A BMS with Switch
- 10A 20A 25A 30A 40A bms with Switch available.
- Standard size or Custom-made Size
- Over Charge Protection
- Over Discharge Protection
- Over Current Protection
- Short Circuit Protection
- Common Port or seperate port
- Non-balancing
Additional information
Product Details:
13S 30A BMS for Li-ion battery pack 48V, mini size 60*30*10mm
| Item | Standard parameters | |||||||
| Charging Protection | Overcharge Protective Voltage(single cell) | 4.225V—4.275 V | ||||||
| Overcharge Release Voltage(single cell) | 4.10V–4.20V | |||||||
| Overcharge Delay Time | 600–1400ms | |||||||
| Continous Charge Current | ≤25A | |||||||
| Discharge Protection | Over Discharge Protective Voltage(single cell) | 2.72V–2.88V | ||||||
| Over Discharge Release Voltage(single cell) | 2.9V–3.1V | |||||||
| Over Discharge Delay Time | 1000–3000S | |||||||
| Continous Discharge Current | 30A | |||||||
| Discharge Overcurrent Protective Current | 110A–150A | |||||||
| Discharge Overcurrent Delay Time | 600–1400ms | |||||||
| Short Circuit Protection | Short-Circuit Protective Delay Time | 300–600us | ||||||
| Recovery Status | Loading removing, recovery automatic | |||||||
| Temperature Protection | Discharge Protective Temperature | 65℃–75℃ | ||||||
| Discharge Protective ReleaseTemperature | 55℃–65℃ | |||||||
| Charge Protective Temperature | 45℃–55℃ | |||||||
| Charge Protective Release Temperature | 40~50℃ | |||||||
| Size | Product size（L*W*H） | 60*33*10mm | ||||||
