Smart BMS 12V 36V 48V
- Smart bms equalization with UART, Bluetooth, 485 and CAN communication port.
- Bms for lithium ion, Lipo battery pack.
- 12V/24V/36V/48V/60V/72V/84V/96V available.
- Smart battery management system with active cell balancing.
Additional information
| Operating voltage range | 37.8V-59.5V |
|---|---|
| Operating current (MAX) | 80A |
| Over-charge protection voltage | 4.25±0.05V |
| Over-discharge protection voltage | 2.7±0.1V |
| Balanced turn-on voltage | 4±0.05V |
| Charging over current protection value | 90±5A |
| High temperature protection value of charging | 65±2℃ |
| High temperature protection value of discharge | 75±2℃ |
| Internal resistance | <10mΩ |
Product Details:
- With Protocol Bluetooth, UART,485 and CAN function.
- Support 3S-32S, 10A-500A Various BMS.
It is suitable for lithium batteries with different types of chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc.

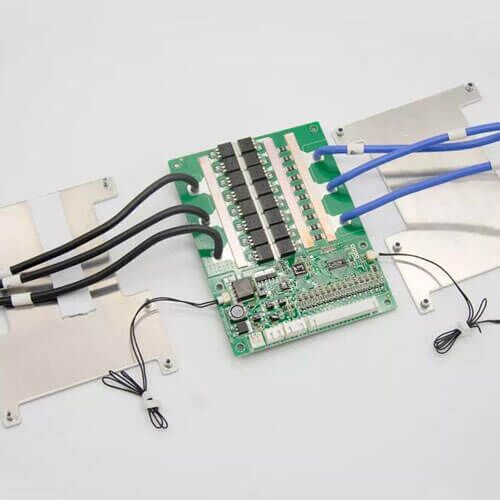

The BMS board has strong carrying-load capacity and the maximum continuous discharge current can reach 120A.
- 15 cell series protection
- Various protection functions for charging and discharging
- Discharge over current, short circuit protection functional processes of hardware
- Over voltage, under voltage, temperature and overload protection function processing of software
- Accurate SOC calculation with automatic SOC learning function
- CANBUS communication function, can read all data of battery in real time
- UART communication function, and online upgrade
- The reserved switch controls the output of protection board
- Hardware discharge over-current, short-circuit protection function processing
