Lithium Balance BMS
-

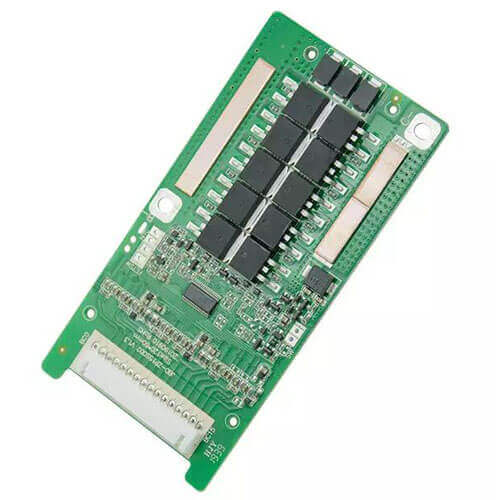

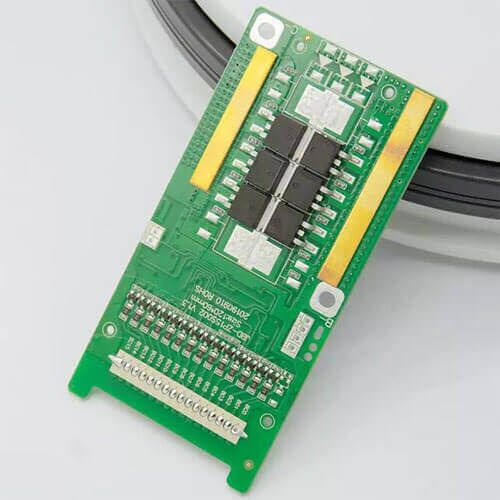

14s 48v 50a bms for li-ion battery pack with balance function and NTC.
- The same-port protection board.
-
OEM/ODM Custom-fitting.
- Support 3S-32S, 10A-500A Various BMS.
Additional information
| Operating voltage range | 37.8V-59.5V |
|---|---|
| Operating current (MAX) | 25A-50A |
| Over-charge protection voltage | 4.25±0.05V |
| Over-discharge protection voltage | 2.7±0.1V |
| Balanced turn-on voltage | 4±0.05V |
| Charging over current protection value | 60±5A |
| High temperature protection value of charging | 65±2℃ |
| High temperature protection value of discharge | 75±2℃ |
| Internal resistance | <10mΩ |
Product Details:
It is designed for 13/14/15 battery packs for E-Bike, E-motorcycles.
Suitable for lithium batteries with different types of chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc.
The BMS board has strong carrying-load capacity and the maximum continuous discharge current can reach 120A.
● Section 13,14,15 integrated protection scheme
● Various protection functions of charging and discharging
● Hardware discharge over current, short circuit protection function processing
● Reserve temperature protection function
● Reserve weak current switch function
● Very low static current consumption
● Drop line protection function
● Balancing
