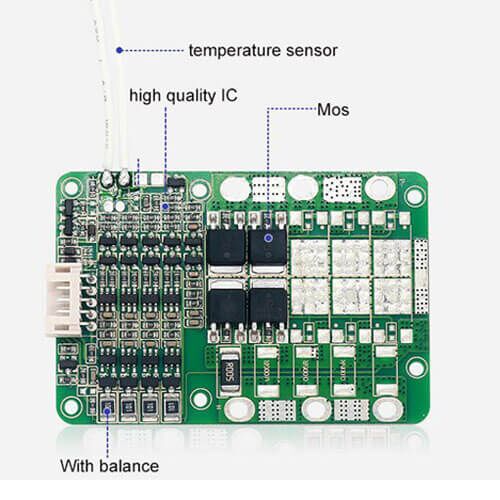

Lifepo4 4S 12V 50A 100A 120A BMS
- Integrated IC
- Over Discharge Protection
- Over Charge Protection
- Over Current Protection
- Short Circuit Protection
- Temperature Protection
- Dropped Line Protection
- Common Port, balanced
Additional information
Product Details:

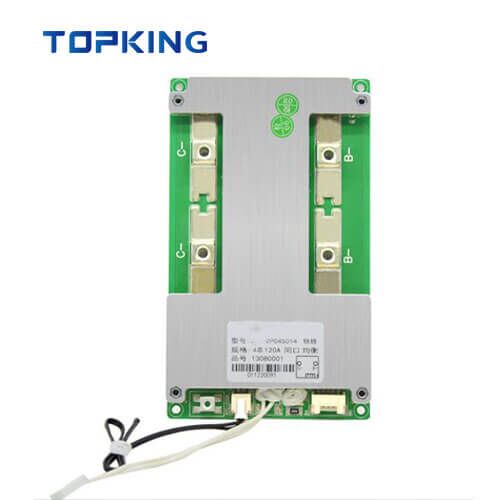

BMS for 4S 120A 12v Lifepo4 Battery
| BMS for 4S 120A LFP | Details | Spec | Unit | Remarks |
| Discharge | Continuous Discharge Current | 120 | A | |
| Instantaneous Discharge Current | 360±50 | A | ||
| Charge | Charge Voltage | 14.4 | V | |
| Charge Current | 60(MAX) | A | ||
| Overcharge Protection | Overcharge Detection Voltage | 3.75±0.05 | V | |
| Overcharge Detection Delay | 1000±200 | MS | ||
| Overcharge Release Voltage | 3.55±0.05 | V | ||
| Power Balancing | Balance Detection Voltage | 3.50±0.05 | V | |
| Balance Current | 42±5 | mA | ||
| Over Discharge Protection | Over Discharge Detection Voltage | 2.2±0.05 | V | |
| Over Discharge detection Delay | 1000±200 | MS | ||
| Over Discharge Release Voltage | 2.70±0.05 | V | ||
| Over Current Protection | Over Current Detection Voltage | 100±10 | mV | |
| Over Current Detection Delay | 600±300 | MS | ||
| Over Current Protection Current | 360±50 | A | Customized | |
| Over Current Protection Release Condition | Loading disconnection | |||
| Short Circuit Protection | Short Circuit Protection Conditions | Short circuit of external load | ||
| Short Circuit Detection Delay | 500±150 | uS | ||
| Short Circuit Protection Release Condition | Charging recovery or loading disconnection | |||
| MOS Protection | Charge/discharge MOS temperature protection | 85 | ℃ | |
| Temperature Protection | Charge Temperature Protection | 65 | ℃ | Customized |
| Discharge Temperature Protection | ℃ | |||
| Internal Resistance | Main circuit resistor | ≤10 | mΩ | |
| Self Consumption | Working Current | ≤50 | uA | |
| Sleepy current( when in discharge ) | ≤20 | uA | ||
| Working Temperature | Temperature Range | -20/65 | ℃ |
