Battery Monitor Built-in Shunt
- 9-100V for battery Li-ion, Lifepo4, AGM, Gel etc.
- Built in Shunt.
- 0-50A Workable.
Additional information
| Voltage | 9V-100V |
|---|---|
| Size | 79*43*27MM |
| Match Cell | Li-ion, LifePo4, AGM, Gel |
Product Details:

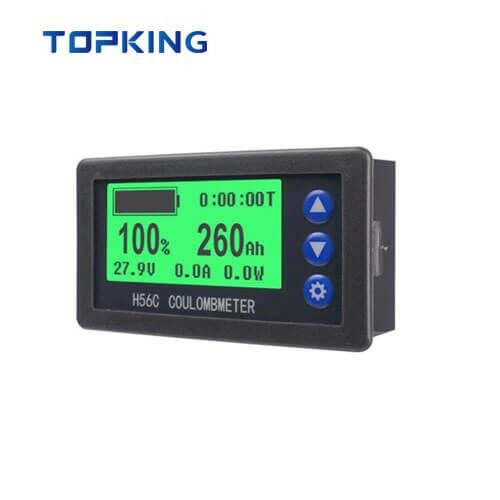

Battery Meter 9-100V battery level indicator with lcd display.
Battery Capacity & Voltage Meter, built-in Shunt 0-50A, Applied to 12V/24V/48V /60V/ 100V RV/Car Battery
| Working Voltage: | 9-100V | Current Accuracy: | 1% ±1 |
| Capacity Range: | 0-99999Ah | Capacity Accuracy | 1% ±1 |
| Display: | LCD with backlight | Lead wire length: | / |
| Working Current: | 7.5mA | Working Temperature: | -10ºC–65ºC |
| Backlight Closed Current | 3.5mA | Type: | Built-in Shunt |
| Voltage Accuracy: | 1% ±1 | Current Range: | 0-50A |

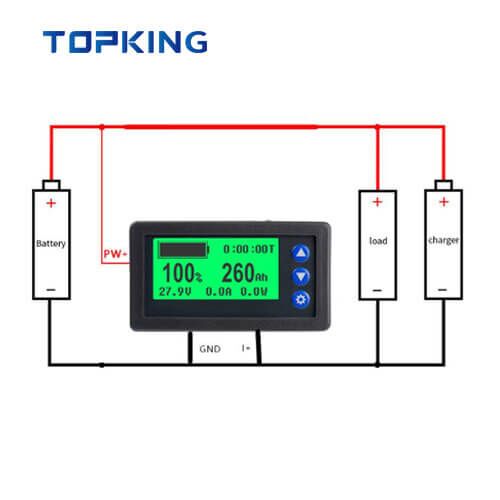

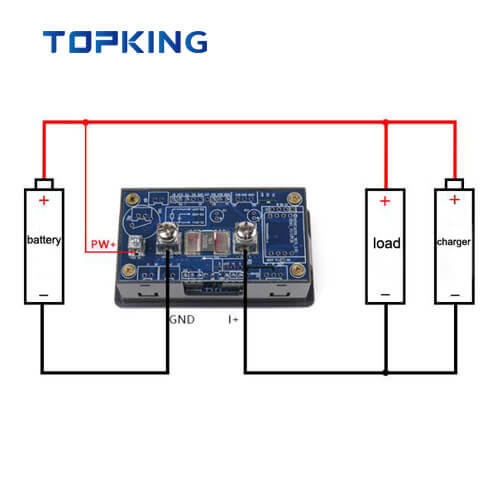

Easy installation, available for lithium batteries, lithium iron phosphate, lead-acid, nickel-metal hydride and other battery packs with operating voltages of 9-100V.
Importance:
It should not be exposed to the sun for a long period of time, nor exposed to extreme conditions < 20℃ or above 70℃ for a long period of time, otherwise it will shorten the service life of the monitor’s LCD screen.
