Battery Voltage Capacity Indicator
- 10-100V for battery Li-ion, Lifepo4, AGM, Gel etc.
Additional information
| Voltage | 10V-100V |
|---|---|

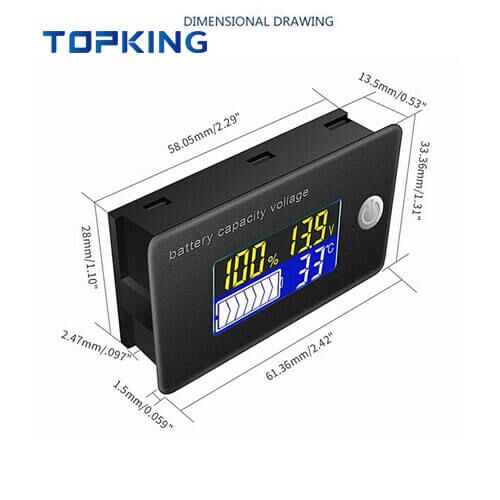

| Size | 61.36*33.6*13.5mm |
| Match Cell | Li-ion, LifePo4, AGM, Gel |
Product Details:
Battery Capacity Voltage Indicator battery level indicator 10V-100V.
Applied to 12V/24V/36V/ 48V /60V/ 100V Battery
| Working Voltage: | 10-100V | Temperature Accuracy: | ±0.5-1 |
| Temperature Range: | -19-80ºC | Capacity Accuracy | 1% ±1 |
| Display: | LCD with backlight | Lead wire length: | 30cm |
| Working Current: | 9mA | Working Temperature: | -10ºC–65ºC |
| Backlight Closed Current | 10uA | Protection: | Reverse connection |
| Voltage Accuracy: | ±0.1-0.5 | Suitable: | 12V36V48V60V72V |
Easy installation, available for Li-ion, LifePo4, Lead acid Battery Capacity Indicator 10-100V.
Importance:
It should not be exposed to the sun for a long period of time, nor exposed to extreme conditions < 20℃ or above 70℃ for a long period of time, otherwise it will shorten the service life of the monitor’s LCD screen.
