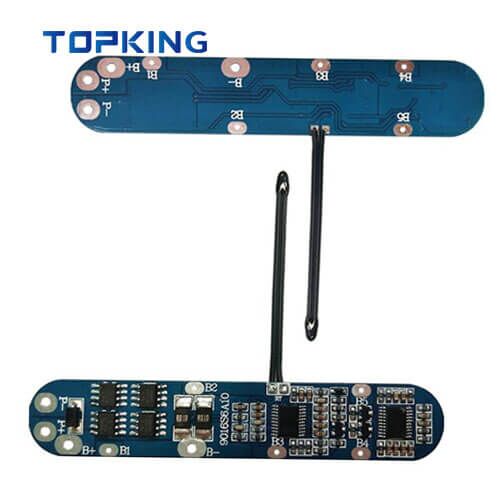

6s 10A 24V Battery Protection Board
6s 5A 8A 10A 15A 20A 25A 30A 50A 100A 150A BMS for 22.2V 25.2V Battery PCM.
- Standard size or Custom-made Size
- Over Charge Protection
- Over Discharge Protection
- Over Current Protection
- Short Circuit Protection
- Common Port
- Dropped Line Protection
- With Temperature sensor
Additional information
Product Details:
6s 10A 22.2V 25.2V BMS for Lithium Battery.
| Voltage | Charge Voltage | DC25.2V |
| Balance Current | / | |
| Overcharge Protection | Overcharge Detection Voltage | 4.25V ± 0.025V |
| Overcharge Release Voltage | 4.13V ± 0.025V | |
| Overcharge Protection Delay time | 1000ms ± 500ms | |
| Over Discharge Protection | Over Discharge Detection Voltage | 2.80V ± 0.025V |
| Over Discharge Release Voltage | 3.0V ± 0.025V | |
| Over Discharge Delay time | 1000ms ± 500ms | |
| Over Current Protection | Continuous discharging current | 10A |
| Discharge Over Current Protection | 20A ± 4A | |
| Over Current Protection Release Condition | Loading disconnection | |
| Short Circuit Protection | Short Circuit Protection Conditions | Short circuit of external load |
| Short Circuit Protection Release Condition | Charging recovery or loading disconnection | |
| Internal Resistance | Protection Circuit (MOSPET) | <5mR |
| Temperature Protection | Operating Temperature Range | -20/85ºC |
| Charge Temperature Protection | 65ºC ± 5ºC | |
| Discharge Temperature Protection | 75ºC ± 5ºC |
Features:
- Built-in high precision voltage detection circuit.
- Built-in three-stage overcurrent detection circuit.
- Battery charging and discharging can be controlled by MOS.
- Operating temperature range -20ºC-85ºC.
- Low current consumption.
- Smart Integrated IC.
