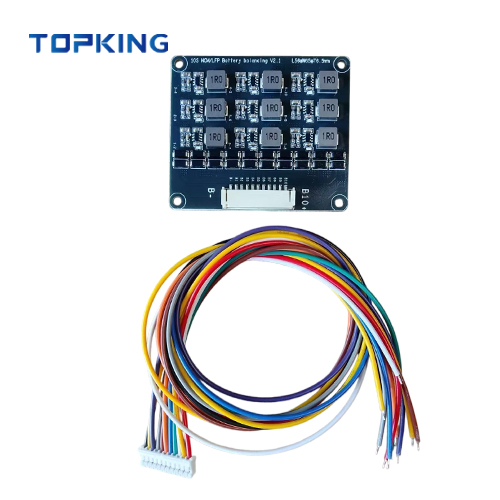

10S 36V Active Balancer
Active Blancer
Suitable: Li-ion / LifePo4
Working voltage: 2.7V-4.5V
Neighboring voltages>0.1V, 0.5A-0.7A Neighboring voltages>0.2V, 1.2A
Max Balance current: 1.2A
With cable 40cm
Additional information
Product Details:
The adjacent voltage difference is above 0.1V, and the current is around 0.5-0.7A.
Adjacent voltage difference above 0.2V, up to a maximum equilibrium current of 1.2A.
The smaller the adjacent pressure difference, the smaller the current.
| Available | 3S | 4S | 5S | 6S | 7S | 8S | 9S | 10S | 12S | 13S | 14S | 16S | 17S |
| Size(MM): | 40*23*6.5 | 55*23*6.5 | 42*45*6.5 | 55*45*6.5 | 55*45*6.5 | 70*45*6.5 | 70*45*6.5 | 56*65*6.5 | 56*65*6.5 | 72*65*6.5 | 81*65*6.5 | 72*85*6.5 | 72*85*6.5 |
